TRUCK MOUNTED CORE RIGS

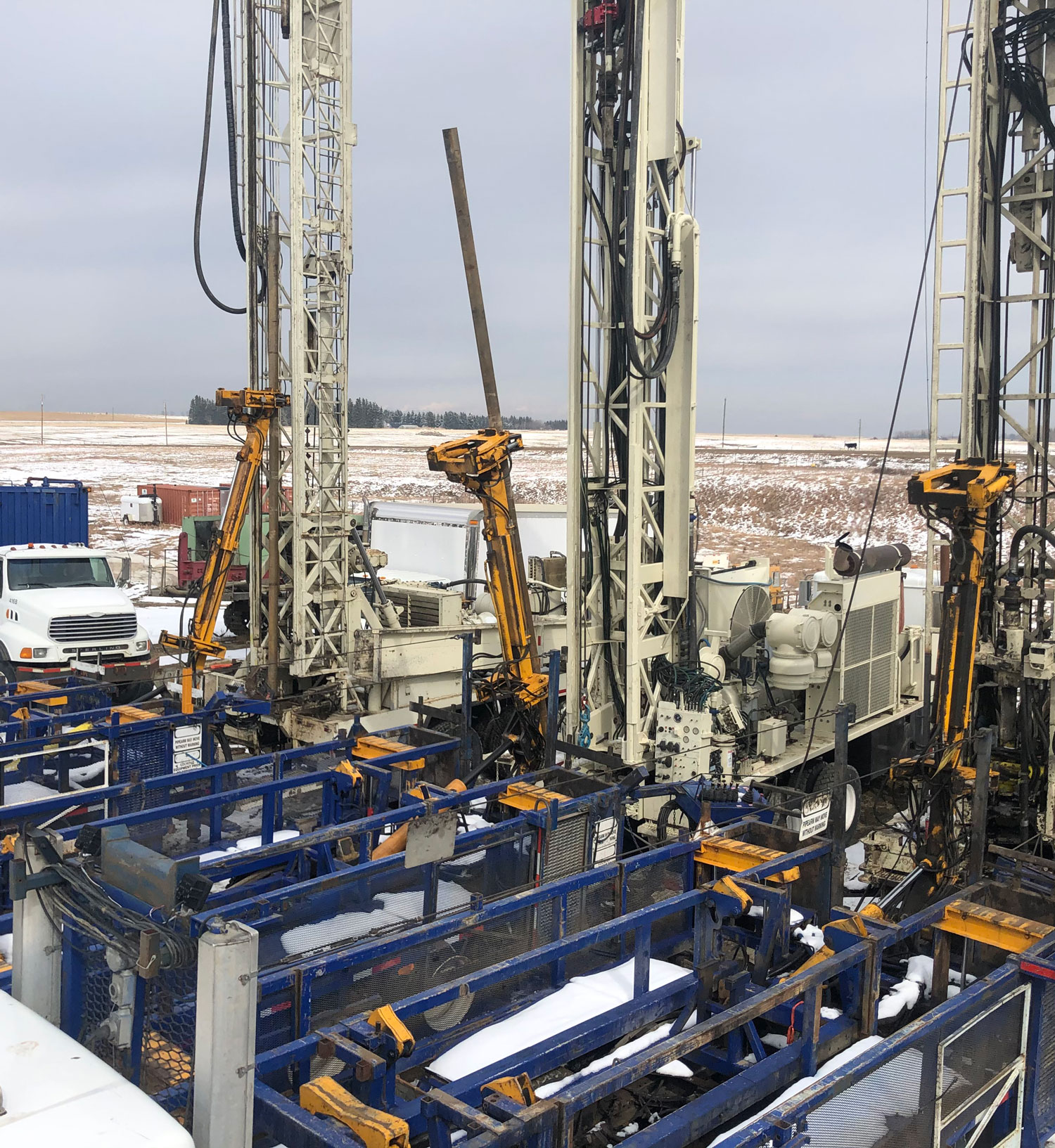

Good Earth Drilling has been sucessfully providing services since September 2005. Partners Steve Wipf, John Teichroeb and Jaysen Inverarity together have combined over 63 years experience in the drilling industry. Good Earth Drilling specializes in Mining, Geothermal, Geotechnical, and Water well drilling. We have coring packages suitable to drill core and deliniation projects in the Oil Sands Mineable area. Quality trained personnel ensure projects are done efficiently, and on budget. Coal deliniation and sampling have been successfully completed with our core . Our Gefco 30K Rigs are well suited for 6” and 3” Coring as well as RC work. These rigs are very versatile in their ability to provide boreholes for many drilling types. The rigs come equipped with 900 CFM air compressors as well as Gardner Denver 5×6 mud pumps already on board. The 30,000 lb pull capacity in conjunction with the 50,000 lb mast strength will allow for drilling depths up to 600 meters with these rigs. We utilize hydraulic pipe trucks to manage pipe handling. These automated, modern drilling systems are very effective in producing consistent drilling results while providing a much safer work environment for our employees.

RIG 151

Our Rig 151 is a Gefco 30K capable of depths to 300 meters. This rig is set up to drill Core, RC, Monitoring wells, Geothermal, Water wells as well as standard open holes. We drill both 3″ and 6″ Christensen core. Our mud pumps include Gardner Denver THE triplex pumps and GD 5×6 pumps depending on demand. Our mud tanks range in volumes from twenty five cubic meters to twelve cubic meters. The rig carries a Sullair 900 CFM air compressor. Optional equipment can include dog house / core van, automated pipe handler, Water truck, 150 KW generator set and 40 HP boilers. These rigs are very flexible and well suited with minor equipment variances to different drilling types.

DOWNLOAD RIG SPECIFICATION

RIG 152

Our rig 152 is an Ingersoll Rand TH75E capable of depths to 600 meters. This rig was totally rebuilt and a new power unit put in place in 2013. This rig is set up to drill Core, RC, Monitoring wells, Geothermal, Water wells as well as standard open holes. We drill both 3″ and 6″ Christensen core. Our mud pumps include Gardner Denver THE triplex pumps and GD 5×6 pumps depending on demand. Our mud tanks range in volumes from twenty five cubic meters to twelve cubic meters. The rig carries a Sullair 900 CFM air compressor. Optional equipment can include dog house / core van, automated pipe handler, Water truck, 150 KW generator set and 40 HP boilers. These rigs are very flexible and well suited with minor equipment variances to different drilling types.

DOWNLOAD RIG SPECIFICATION

RIG 154

Our rig 154 is an Ingersoll Rand TH75E capable of depths to 600 meters. This rig was totally rebuilt and a new power unit put in place in 2013. This rig is set up to drill Core, RC, Monitoring wells, Geothermal, Water wells as well as standard open holes. We drill both 3″ and 6″ Christensen core. Our mud pumps include Gardner Denver THE triplex pumps and GD 5×6 pumps depending on demand. Our mud tanks range in volumes from twenty five cubic meters to twelve cubic meters. The rig carries a Sullair 900 CFM air compressor. Optional equipment can include dog house / core van, automated pipe handler, Water truck, 150 KW generator set and 40 HP boilers. These rigs are very flexible and well suited with minor equipment variances to different drilling types.

DOWNLOAD RIG SPECIFICATION
